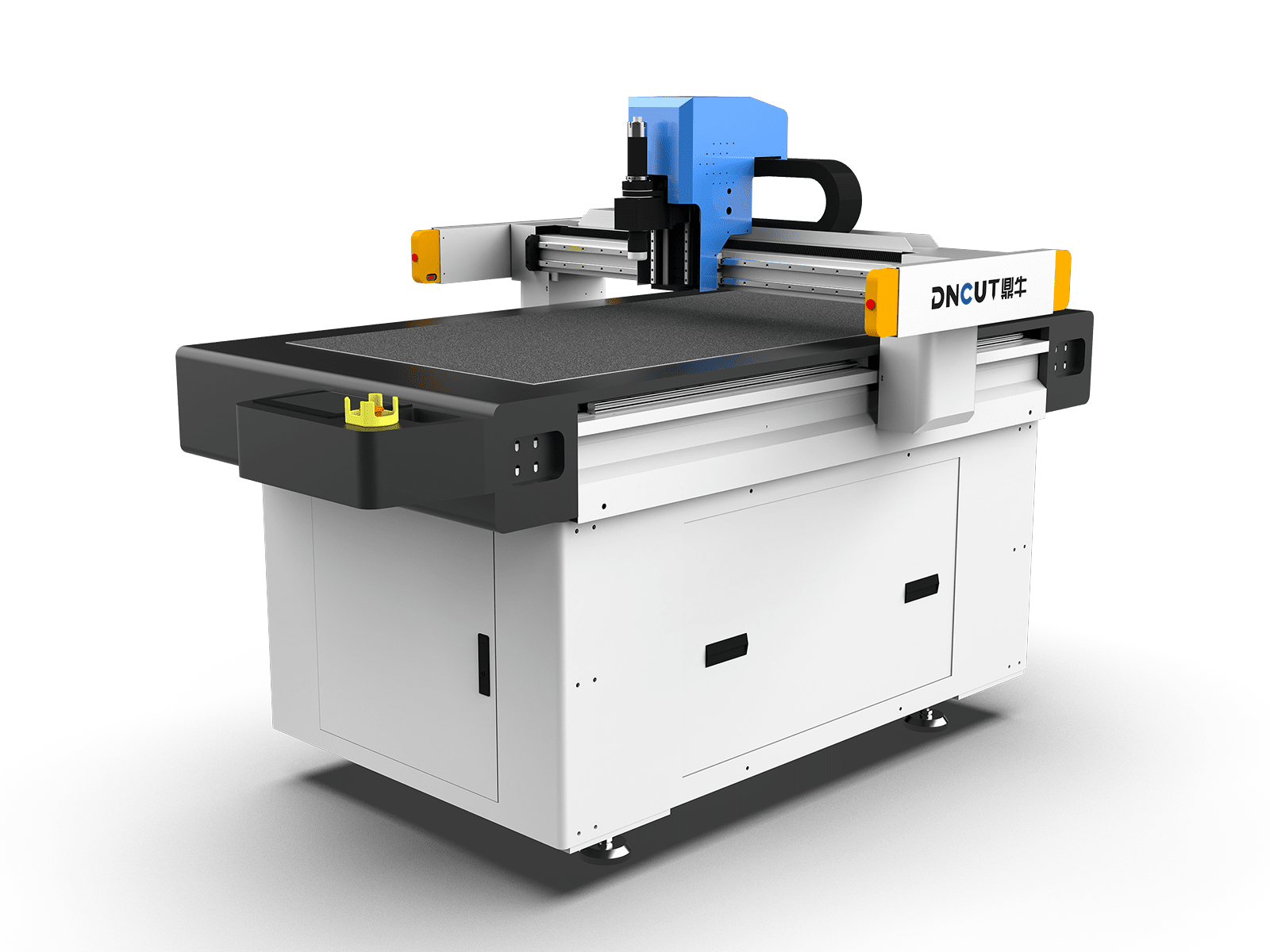

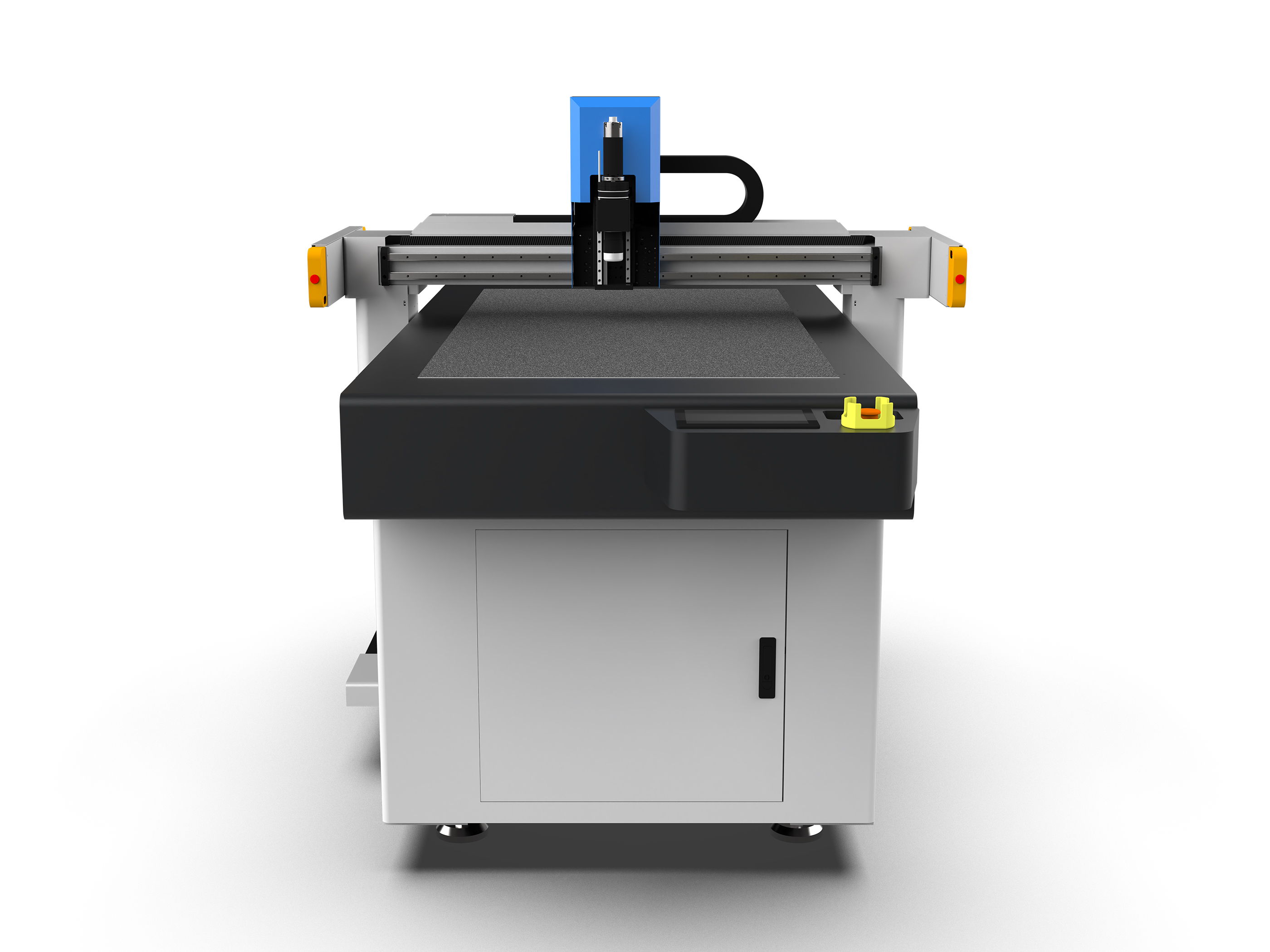

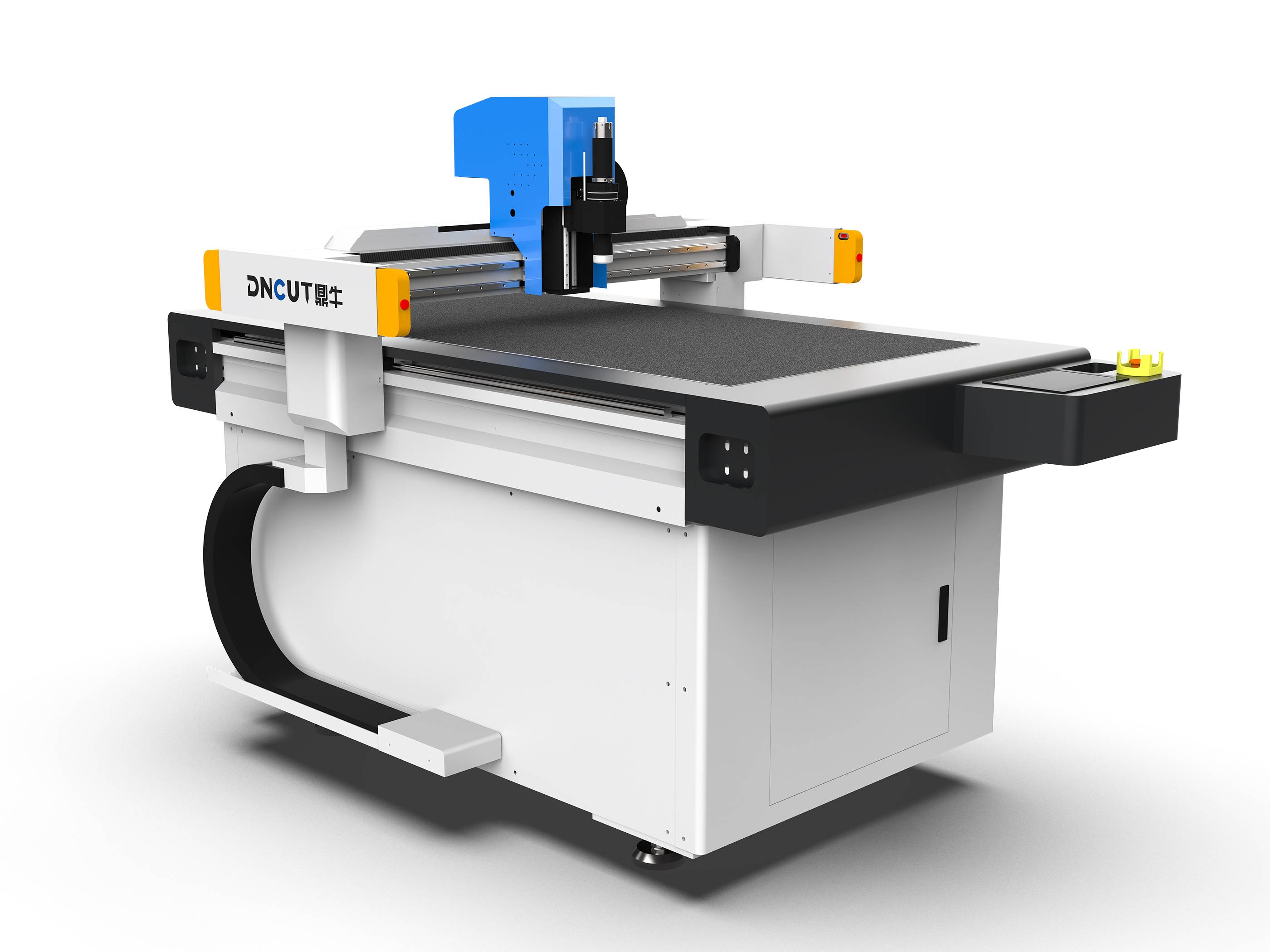

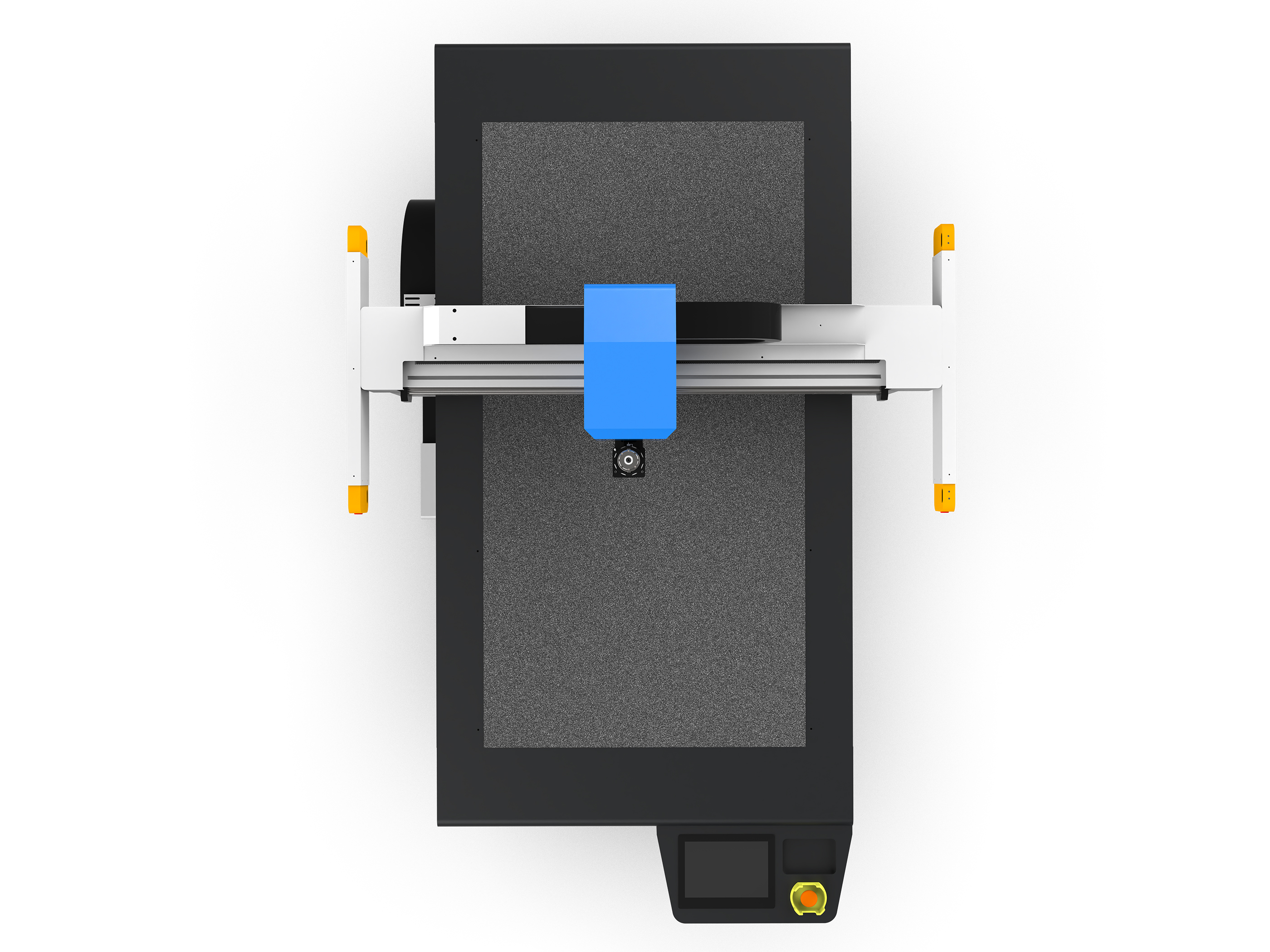

DN5 Series
Small-Sized Standard Cutting Machine
Powerful electric vibrating knife with servo-driven press wheel for premium boxes.
Electric-driven vibrating knife head with strong force and high vibration frequency. High-precision transmission delivers faster response, higher positioning accuracy and stable performance. Servo motors independently control the vibrating knife and the press wheel — half-cut depth on grey paperboard for premium boxes is computer-controlled for perfect results.
- Electric vibrating knife, high frequency
- Independent servo-driven press wheel
- Computer-controlled half-cut depth
- Ideal for premium packaging boxes
Technical Data
Full specifications.
Every AgileBull machine ships with a modular tooling head, servo-driven precision axes and dual-layer safety systems.
- Effective Cutting Area (L×W)
- 1400×1000 / 1800×1300 / 2500×1600 / 2500×1800 mm
- Overall Dimensions (L×W)
- 2100×1700 / 2500×2000 / 3200×2300 / 3200×2500 mm
- Special Dimensions
- Customisable
- Cutting Tools
- Vibration knife, trailing knife, half-cut, camera, drawing pen, cursor, pneumatic knife, flying knife, press wheel, V-slot knife, milling cutter
- Safety Devices
- Physical anti-collision + infrared sensing
- Cutting Thickness
- 0.2 – 60 mm (customisable)
- Cutting Speed
- ≤ 1200 mm/s
- Cutting Accuracy
- ±0.1 mm
- Repeatability
- ≤ 0.05 mm
- Min. Cutting Diameter
- ≥ 3 mm
- Positioning
- Laser light or CCD camera positioning
- Material Fixing
- Vacuum suction
- Transmission Interface
- Ethernet port
- Software Compatibility
- AI, CAD, CorelDRAW & all box-type design software
- Command System
- DXF, HPGL compatible
- Control Panel
- Multilingual LCD touch panel
- Power Supply
- AC 220V / 380V ±10%, 50Hz — 9 kW total
- Air Pump
- 7.5 kW
- Operating Environment
- -10°C – 40°C, 20 – 80% RH
