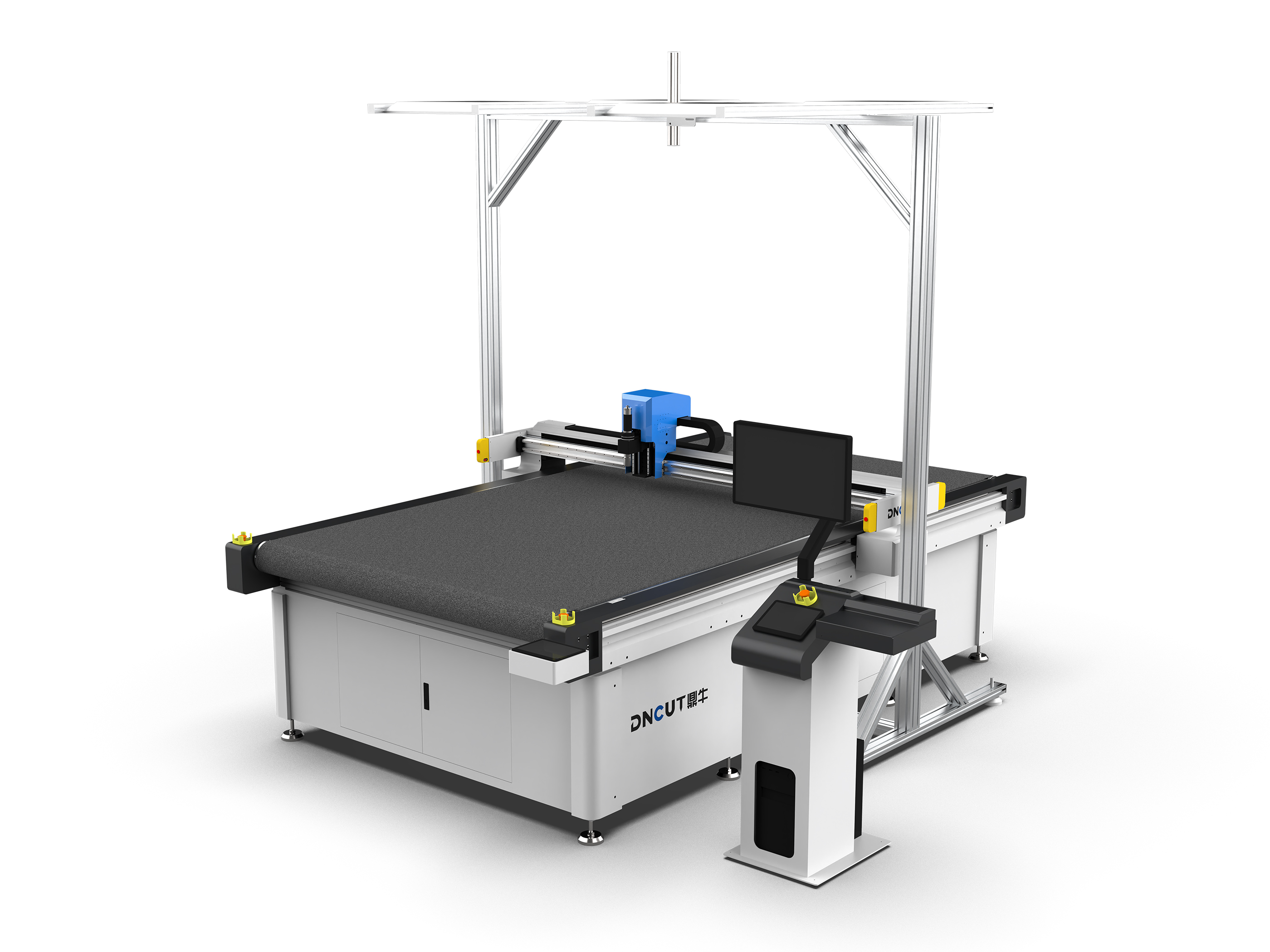

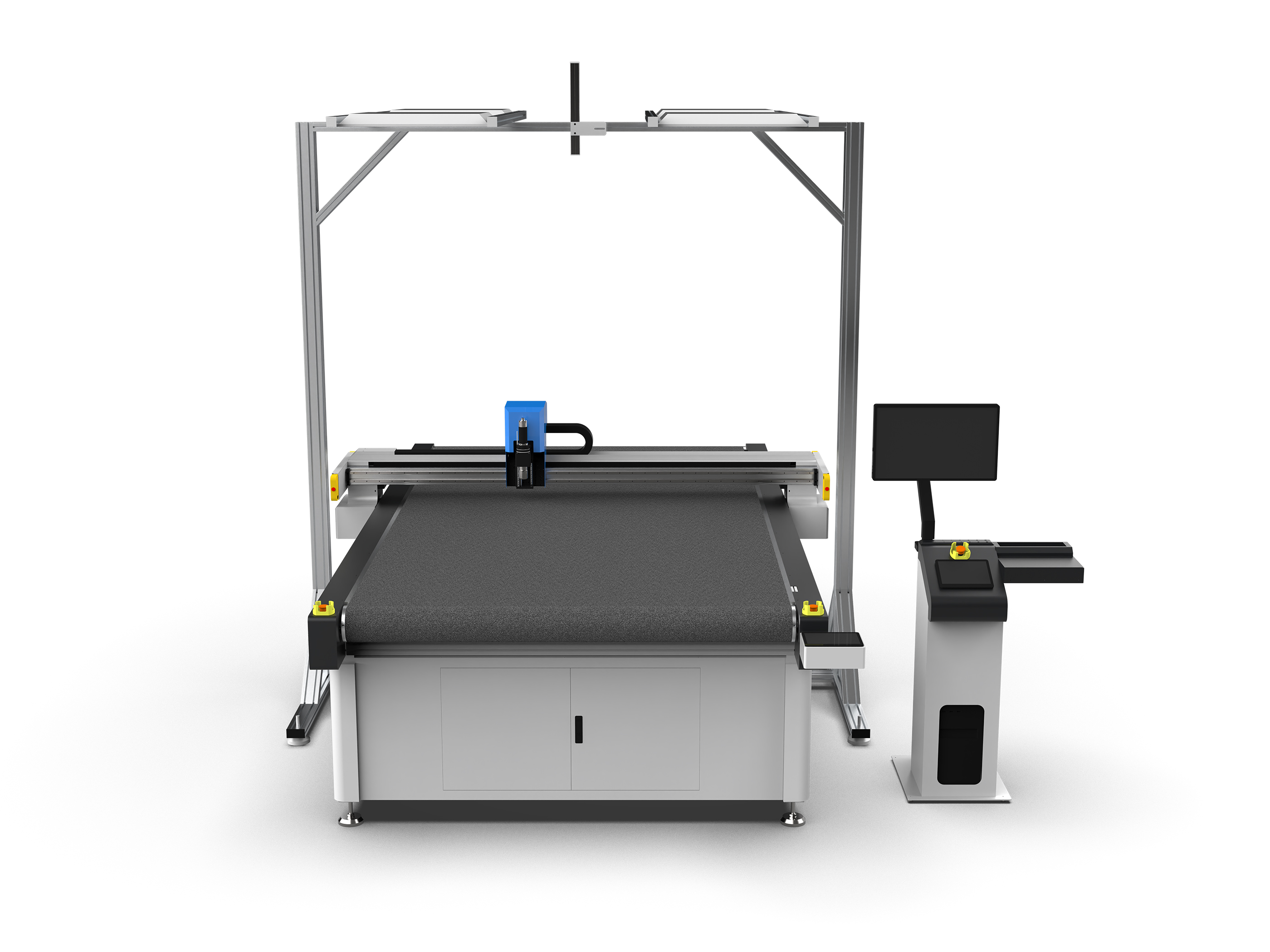

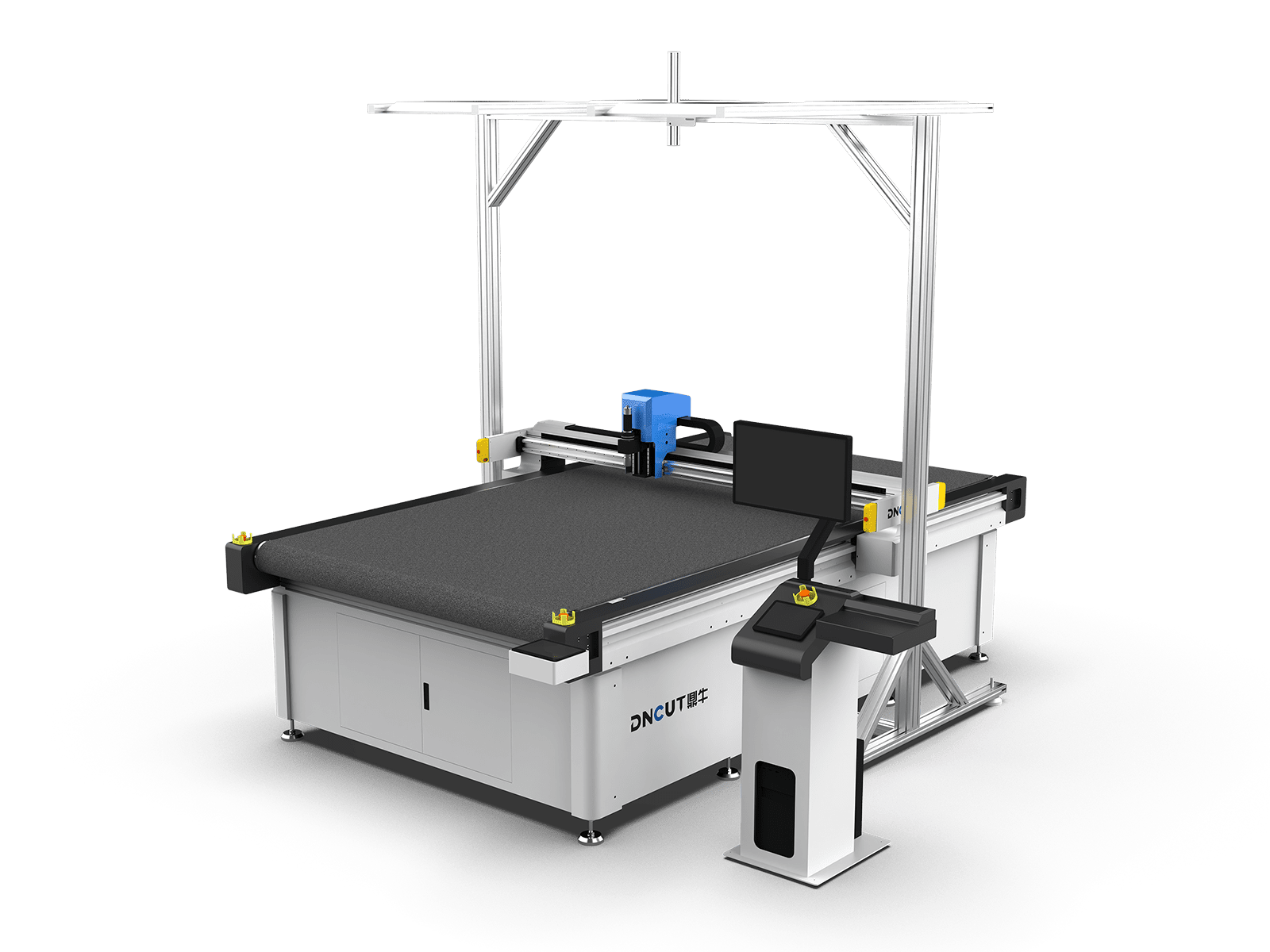

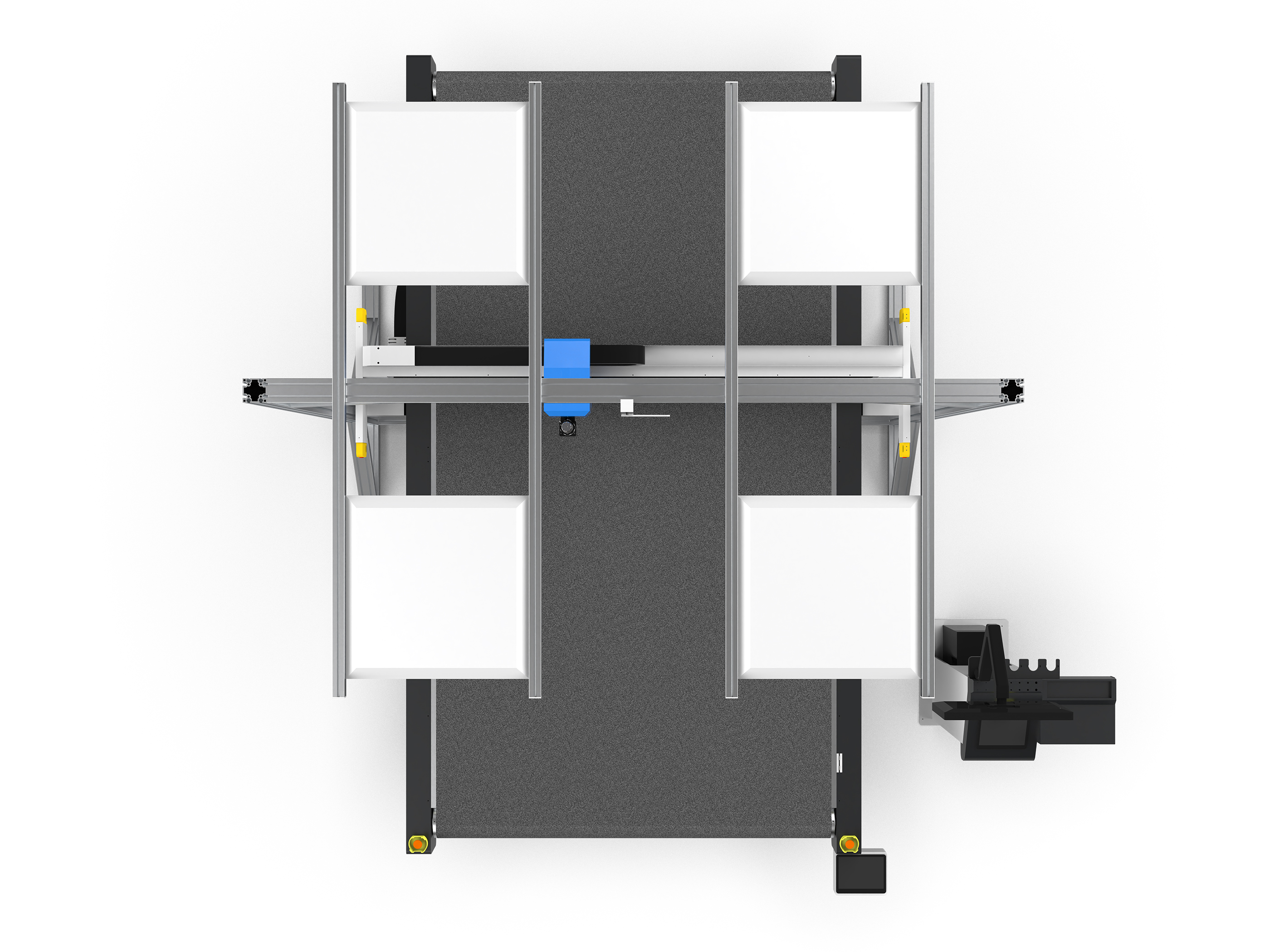

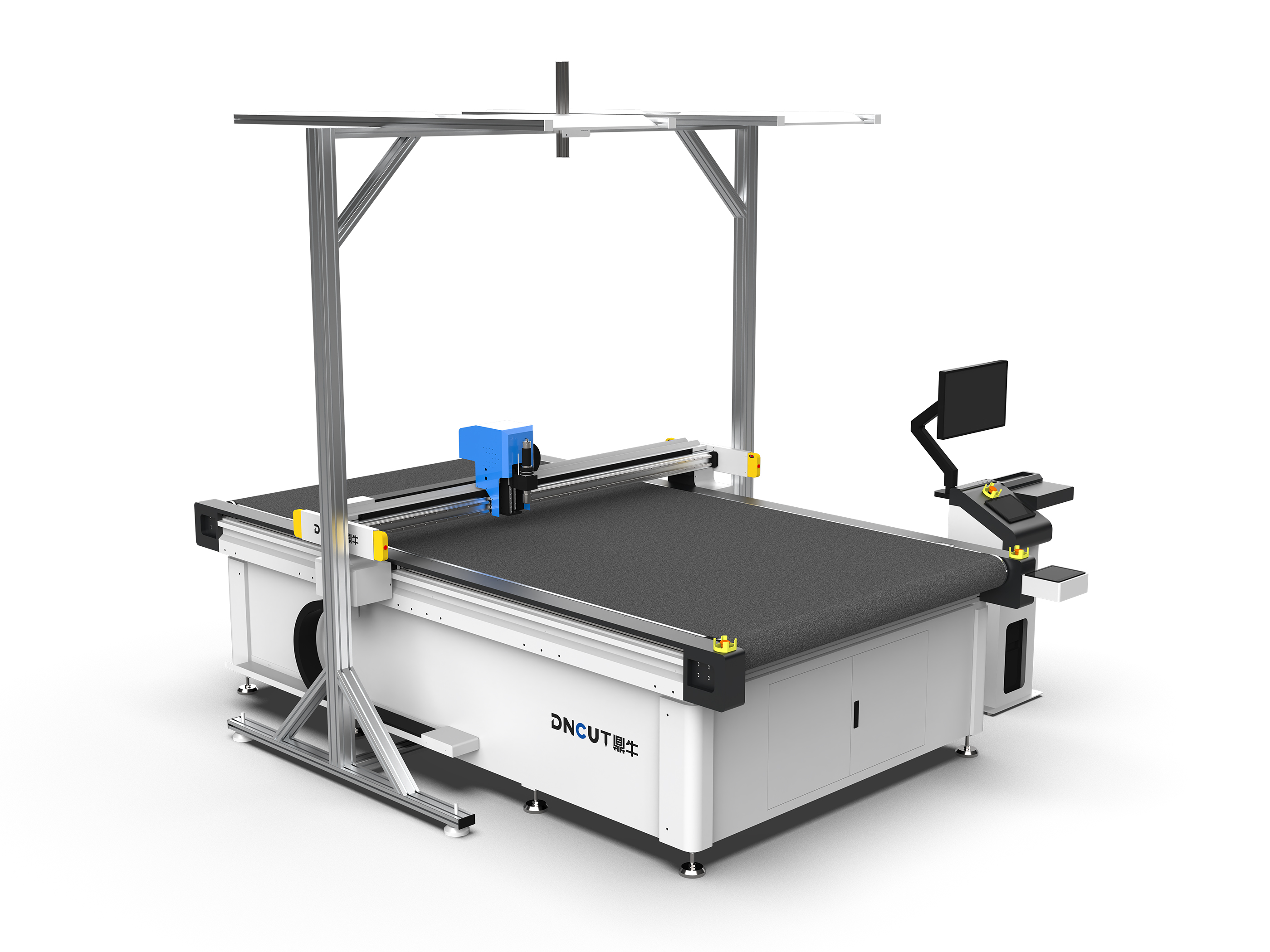

DN6-VI
Intelligent Large-Vision Cutting Machine
DSLR / industrial-camera vision system for printed fabrics and graphics.
Uses a DSLR or industrial camera to shoot the workpiece and automatically generate cutting paths or feature-based positioning. Locates and cuts printed fabrics and graphic materials in seconds. Simple to operate, extremely flexible.
- DSLR / industrial camera vision
- Auto path generation from prints
- Optional multi-zone vacuum + follow-up suction
- Perfect for printed fabric & graphics
Technical Data
Full specifications.
Every AgileBull machine ships with a modular tooling head, servo-driven precision axes and dual-layer safety systems.
- Effective Cutting Area (L×W)
- 1800×1600 / 2500×1600 / 2500×1800 / 3000×2000 mm
- Overall Dimensions (L×W)
- 2900×2300 / 3600×2300 / 3600×2500 / 4100×2700 mm
- Special Dimensions
- Customisable
- Cutting Tools
- Vibration knife, trailing knife, half-cut, drawing pen, cursor, pneumatic knife, flying knife, press wheel, V-slot knife
- Safety Devices
- Physical anti-collision + infrared sensing
- Cutting Thickness
- 0.2 – 60 mm (customisable)
- Cutting Speed
- ≤ 1200 mm/s
- Cutting Accuracy
- ±0.1 mm
- Repeatability
- ≤ 0.05 mm
- Min. Cutting Diameter
- ≥ 2 mm
- Positioning
- Laser light + large-vision positioning
- Material Fixing
- Vacuum suction, optional intelligent multi-zone + follow-up
- Transmission Interface
- Ethernet port
- Software Compatibility
- AI, CAD, CorelDRAW & all box-type design software
- Command System
- DXF, HPGL compatible
- Control Panel
- Multilingual LCD touch panel
- Power Supply
- AC 220V / 380V ±10%, 50Hz — 9 kW total
- Air Pump
- 7.5 kW
- Operating Environment
- -10°C – 40°C, 20 – 80% RH
