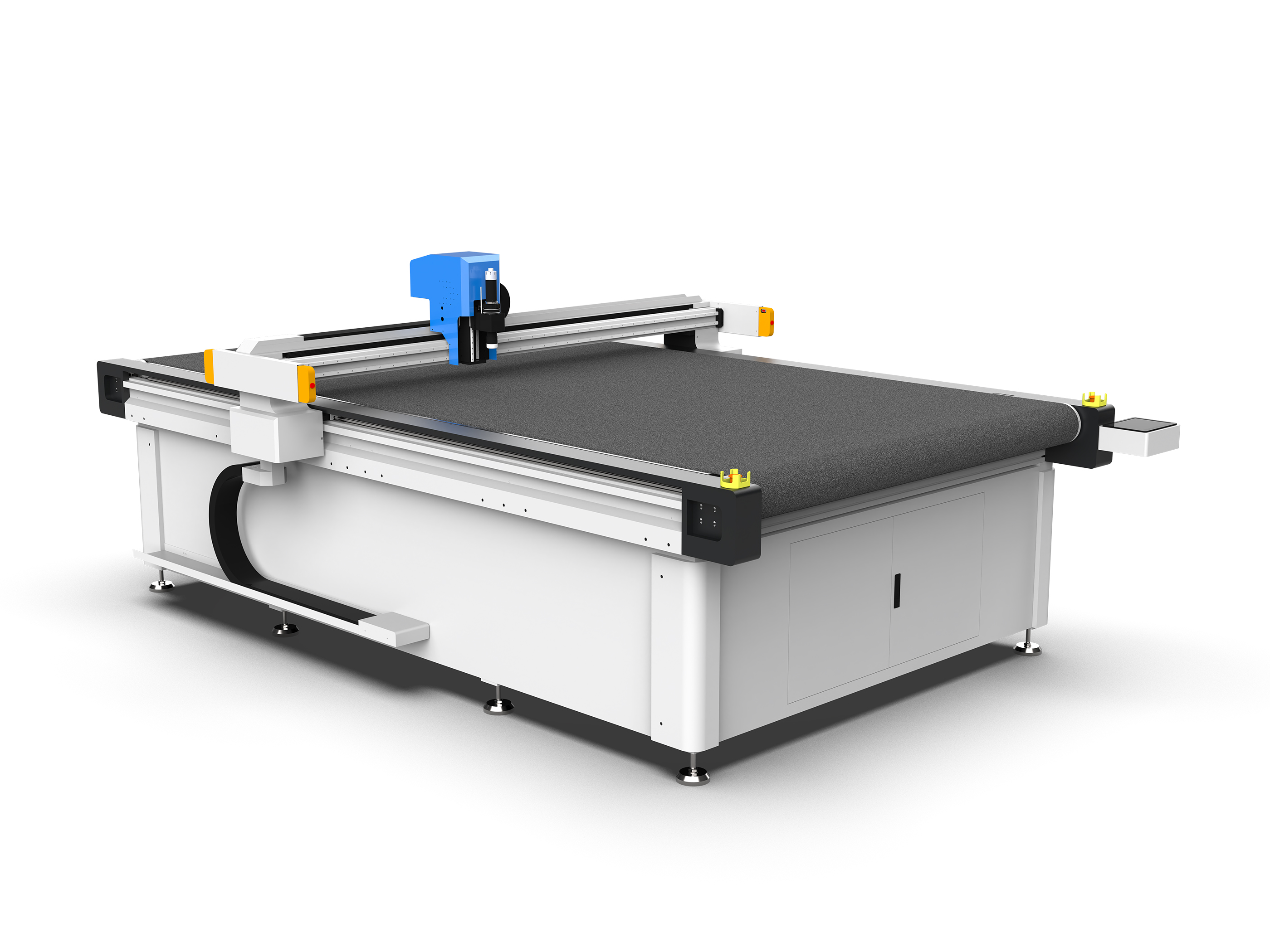

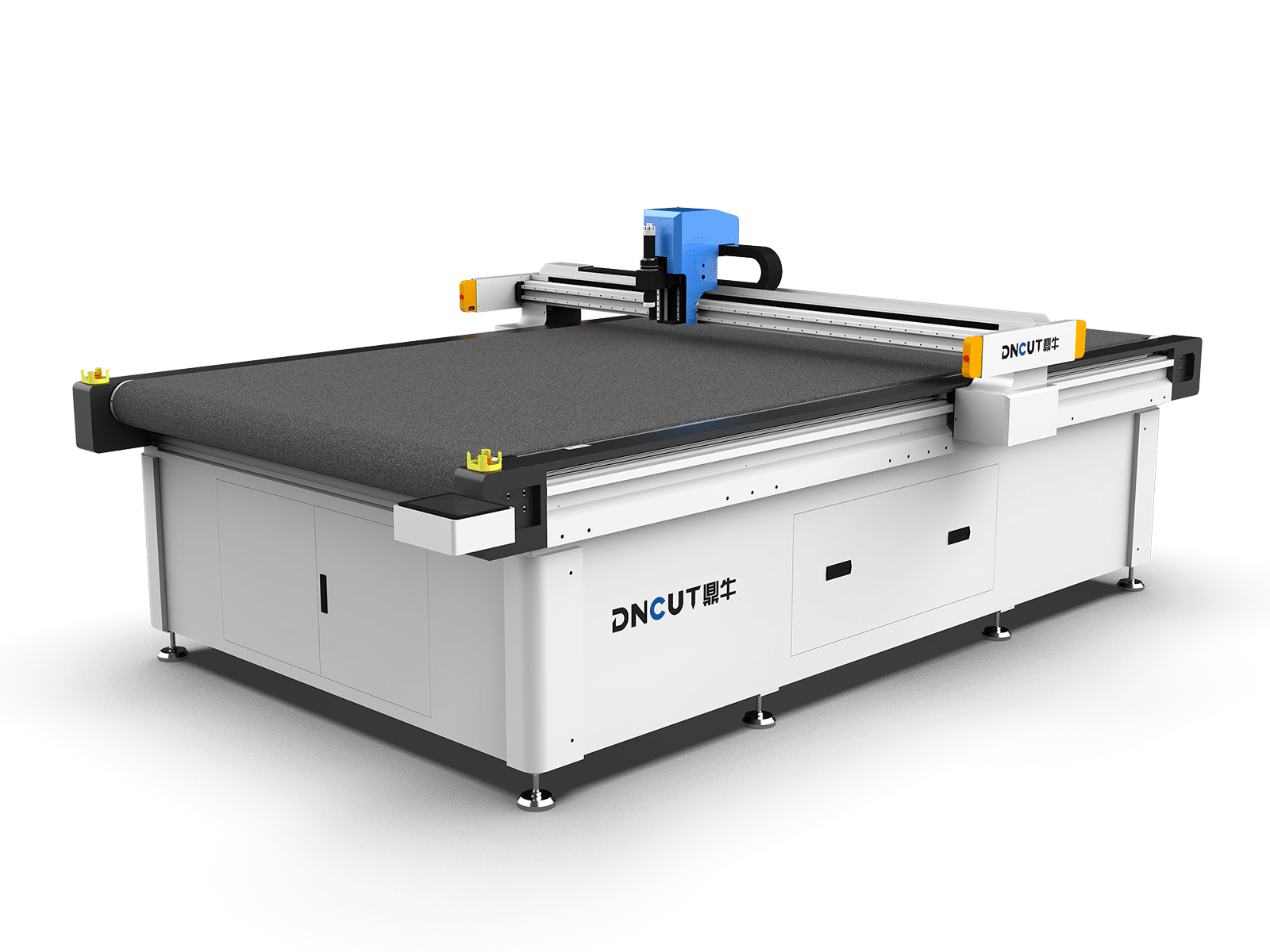

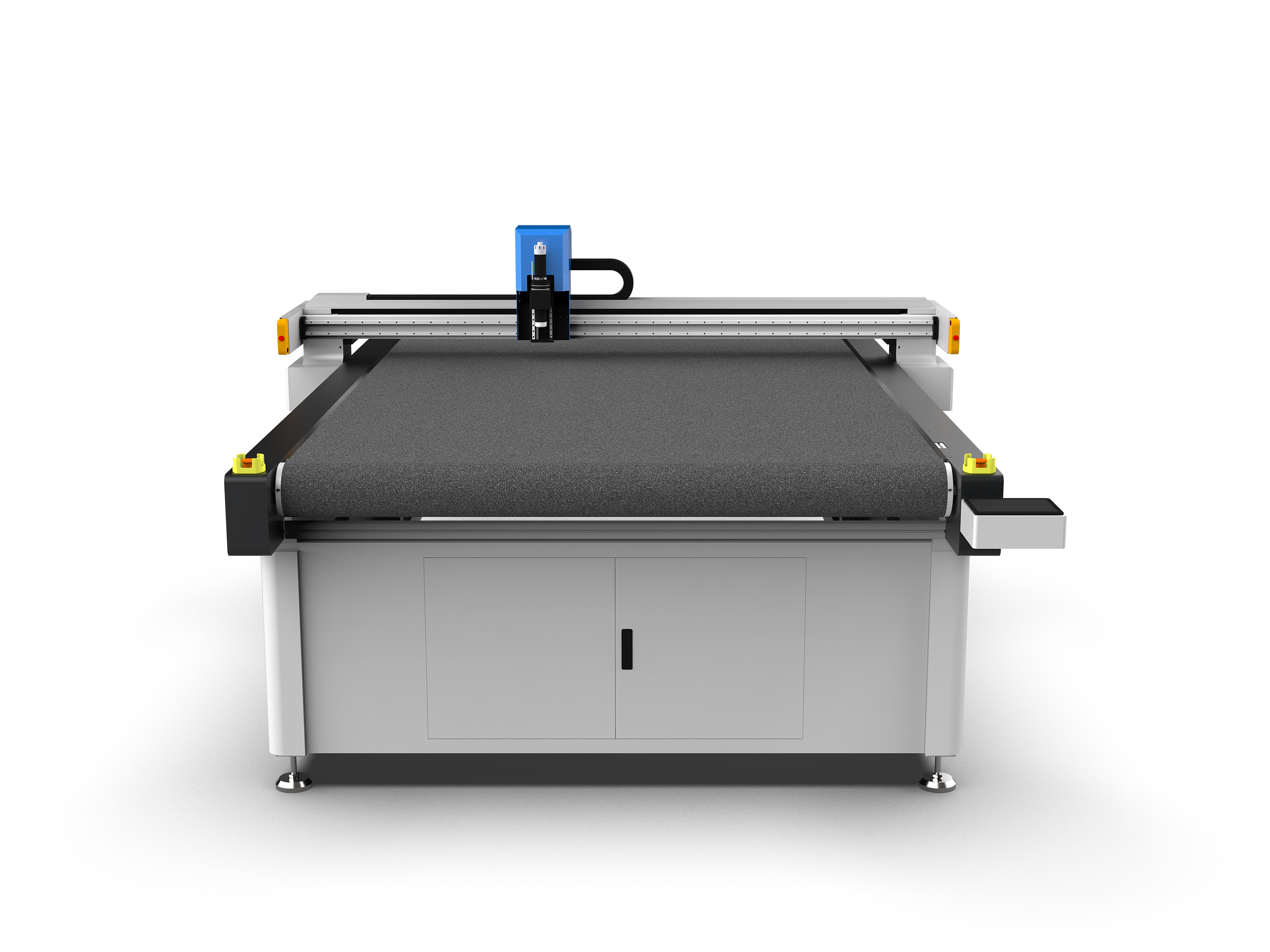

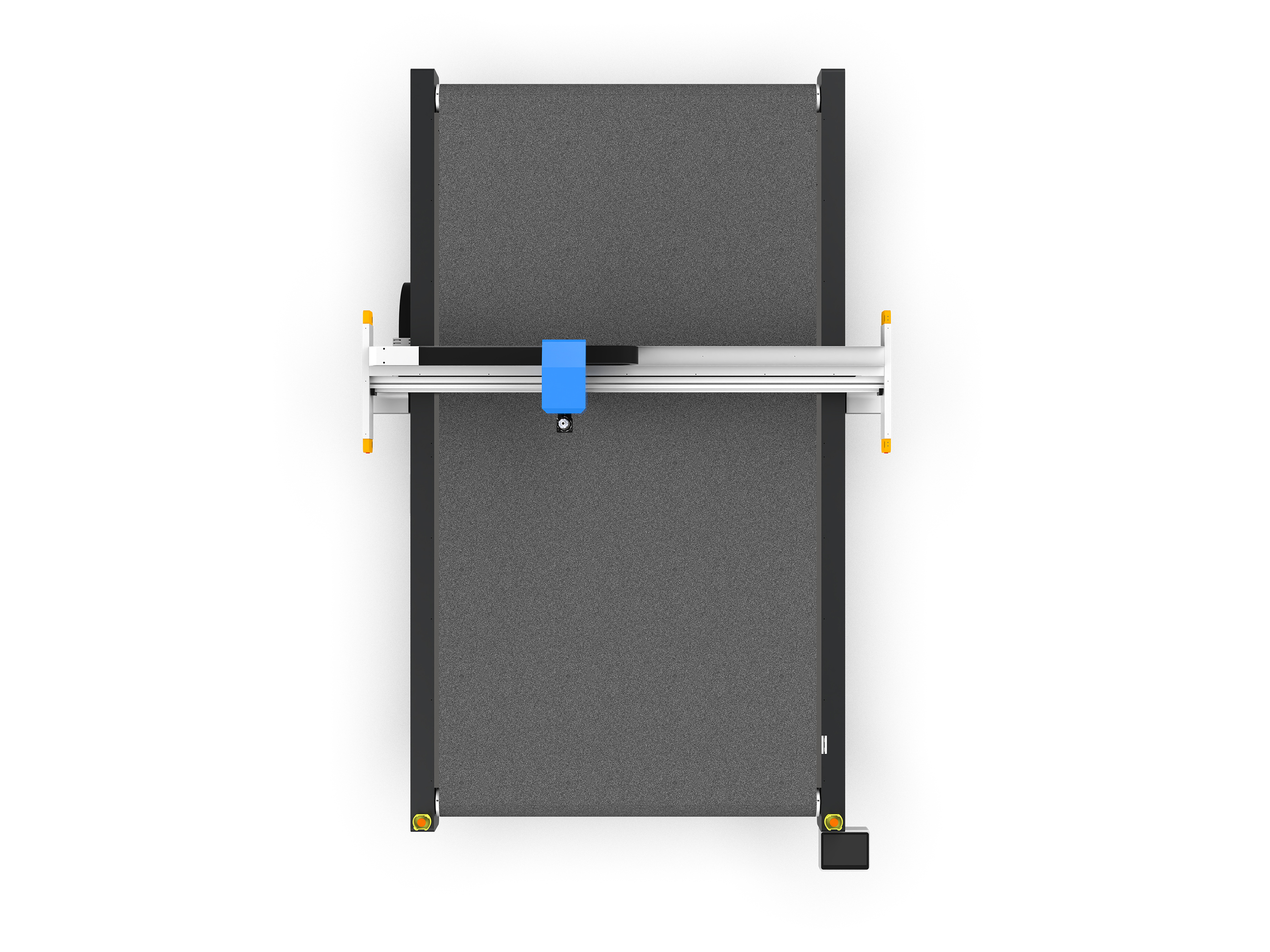

DN6 Series
Universal Cutting Machine
High-precision helical rack + modular vibrating knife — one machine, unlimited materials.
Employs a high-precision helical rack transmission combined with a vibrating knife to effortlessly handle high-hardness materials. High accuracy, high speed and continuous-duty capability with full modular flexibility. Whether cutting fabric, leather, carpet, PVC, corrugated board, foam, advertising media, carbon fibre or gaskets — the DN6 covers it all.
- Modular cutter head — any combination
- Helical rack transmission for high hardness
- Continuous-duty industrial workflow
- Auto-nesting & auto-optimisation
Technical Data
Full specifications.
Every AgileBull machine ships with a modular tooling head, servo-driven precision axes and dual-layer safety systems.
- Effective Cutting Area (L×W)
- 1400×1000 / 1800×1300 / 2500×1600 / 2500×1800 / 3000×2000 mm
- Overall Dimensions (L×W)
- 2100×1700 / 2500×2000 / 3200×2300 / 3200×2500 / 3700×2700 mm
- Special Dimensions
- Customisable
- Cutting Tools
- Vibration knife, trailing knife, half-cut, camera, drawing pen, cursor, pneumatic knife, flying knife, press wheel, V-slot knife, milling cutter
- Safety Devices
- Physical anti-collision + infrared sensing
- Cutting Thickness
- 0.2 – 60 mm (customisable)
- Cutting Speed
- ≤ 1200 mm/s
- Cutting Accuracy
- ±0.1 mm
- Repeatability
- ≤ 0.05 mm
- Min. Cutting Diameter
- ≥ 3 mm
- Positioning
- Laser light or CCD camera positioning
- Material Fixing
- Vacuum suction
- Transmission Interface
- Ethernet port
- Software Compatibility
- AI, CAD, CorelDRAW & all box-type design software
- Command System
- DXF, HPGL compatible
- Control Panel
- Multilingual LCD touch panel
- Power Supply
- AC 220V / 380V ±10%, 50Hz — 9 kW total
- Air Pump
- 7.5 kW
- Operating Environment
- -10°C – 40°C, 20 – 80% RH
